Mulle-Tight Rod

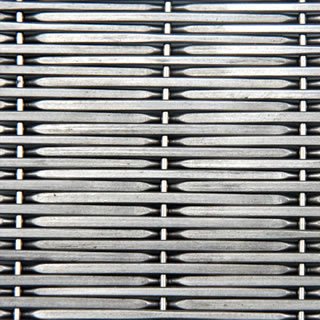

TGTR-1014-21014
open area: 5%
warp rod: 1mm
weft rod: 1.4mm
warp pitch: 21mm
weft pitch: 1.4mm
thicknes: 3.5mm
materials: cuprum, stainless steel
application: wall partition

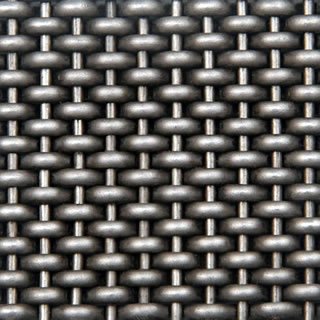

  TGTR-1420-5020
open area: 5%
warp rod: 1.4mm
weft rod: 2mm
warp pitch: 5mm
weft pitch: 2mm
thicknes: 5.5mm
materials: cuprum, stainless steel
application: wall partition

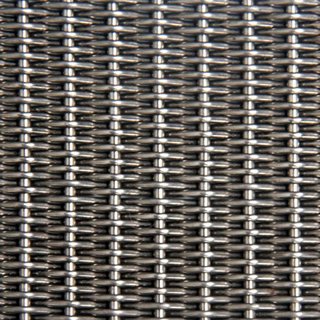

TGTR-1410-6010
open area: 5%
warp rod: 1.4mm
weft rod: 1mm
warp pitch: 6mm
weft pitch: 1mm
thicknes: 3.5mm
materials: cuprum, stainless steel
application: wall partition

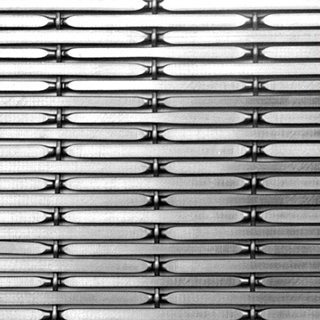

  TGTR-1020-21030
open area: 5%
warp rod: 1mm
weft rod: 2mm
warp pitch: 21mm
weft pitch: 3mm
thicknes: 3.5mm
materials: cuprum, stainless steel
application: wall partition
